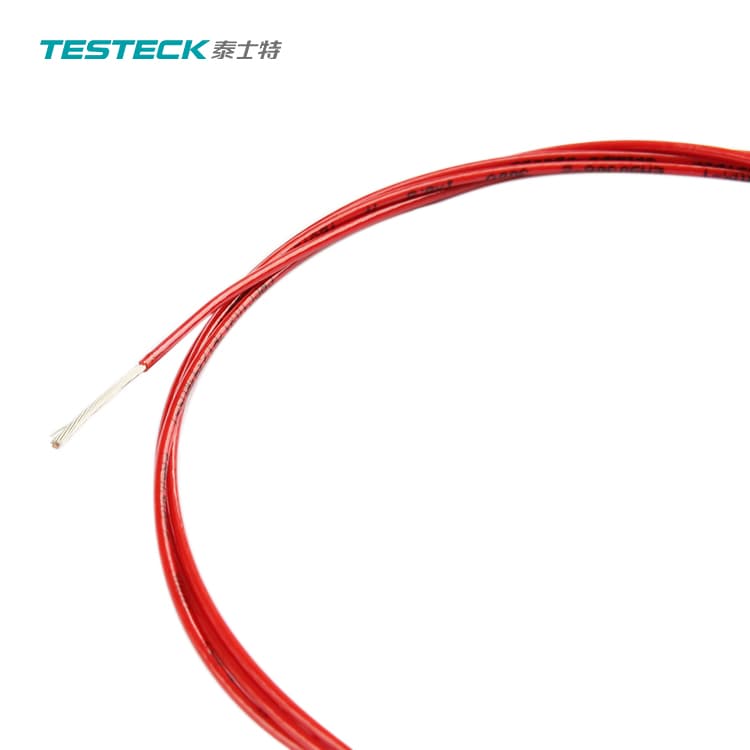

600V PEEK high temperature salt and alkali resistant single core shielded silicone cable & wire
600V PEEK high temperature salt and alkali resistant single core shielded silicone cable & wire has seawater resistance, light weight, small size, flame retardancy, low smoke halogen-free flame retardant, high and low temperature resistance, radiation resistance and good mechanical properties.
GET A QUOTE
Applications
600V PEEK high temperature salt and alkali resistant single core shielded silicone cable & wire has seawater resistance, light weight, small size, flame retardancy, low smoke halogen-free flame retardant, high and low temperature resistance, radiation resistance and good mechanical properties. It is widely used in ultra-high temperature wires for rail transit high-speed traction locomotives, ships, and aviation industries; oilfield submersible pump motor winding wires, oilfield deep well submersible pump motor lead wires, nuclear power winding wires, and sensor back-ends, etc.
Industry standard
- lEN45545-2
Product Features:
- Long-term temperature resistance: -50-250℃
- Withstand voltage level: 300V 600V
- Resistant to gamma radiation: 850KGy can be used for a long time.
- Low smoke, halogen-free, flame retardant, high and low temperature resistant
Technical Parameters
| Number of core wires and nominal cross-section |
Minimum thickness of sheath |
Cable outer diameter D |
20℃ conductor resistance |
Average weight |
|
|---|---|---|---|---|---|
| mm2 | mm | Min | Max | Max | Kg/km |
| mm | mm | Ω/km | |||
| 2*0.06 | 0.25 | 1.9 | 2 | 330 | 3.78 |
| 2*0.08 | 0.25 | 2.05 | 2.15 | 227 | 4.52 |
| 2*0.14 | 0.25 | 2.3 | 2.4 | 126 | 6.29 |
| 2*0.2 | 0.25 | 2.5 | 2.6 | 83.5 | 7.88 |
| 2*0.35 | 0.25 | 2.8 | 2.9 | 49.5 | 10.67 |
| 2*0.5 | 0.25 | 3.1 | 3.2 | 40.1 | 13.94 |
| 3*0.06 | 0.25 | 2 | 2.1 | 330 | 4.85 |
| 3*0.08 | 0.25 | 2.15 | 2.25 | 227 | 5.82 |
| 3*0.14 | 0.25 | 2.45 | 2.55 | 126 | 8.43 |
| 3*0.2 | 0.25 | 2.65 | 2.75 | 83.5 | 10.72 |
| 3*0.35 | 0.25 | 3 | 3.1 | 49.5 | 14.76 |
| 3*0.5 | 0.25 | 3.3 | 3.4 | 40.1 | 19.52 |
| 4*0.06 | 0.25 | 2.2 | 2.3 | 330 | 6.01 |
| 4*0.08 | 0.25 | 2.35 | 2.45 | 227 | 7.26 |
| 4*0.14 | 0.25 | 2.65 | 2.75 | 126 | 10.69 |
| 4*0.2 | 0.25 | 2.9 | 3 | 83.5 | 13.68 |
| 4*0.35 | 0.25 | 3.3 | 3.4 | 49.5 | 18.98 |
| 4*0.5 | 0.25 | 3.65 | 3.75 | 40.1 | 25.25 |
| 5*0.06 | 0.25 | 2.4 | 2.5 | 330 | 7.19 |
| 5*0.08 | 0.25 | 2.55 | 2.65 | 227 | 8.73 |
| 5*0.14 | 0.25 | 2.95 | 3.05 | 126 | 12.95 |
| 5*0.2 | 0.25 | 3.2 | 3.3 | 83.5 | 16.66 |
| 5*0.35 | 0.25 | 3.6 | 3.7 | 49.5 | 23.25 |
