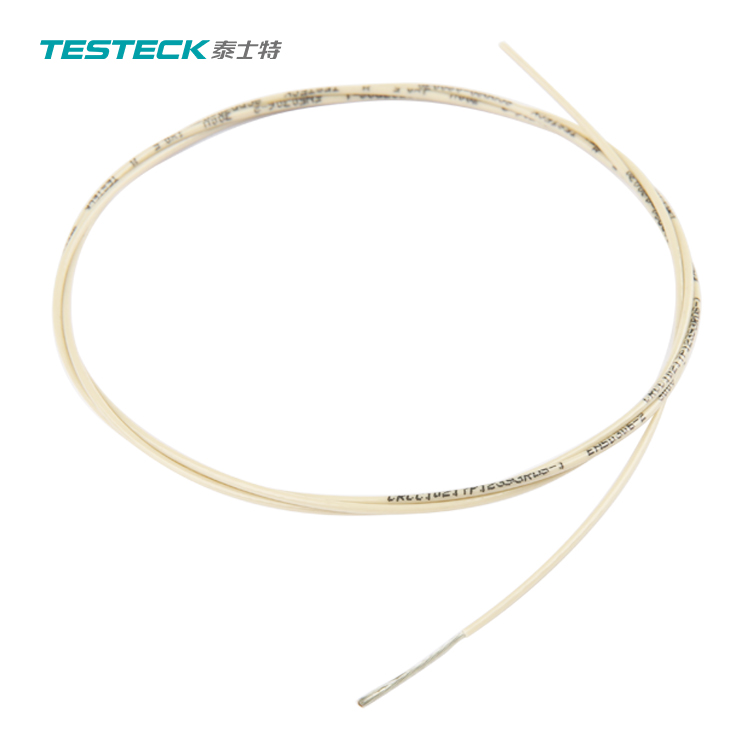

PI LSZH high and low temperature resistant radiation protection cable
PI LSZH high and low temperature resistant radiation protection cable has low smoke, halogen-free, flame retardant, high and low temperature resistance, radiation resistance and good mechanical properties.
GET A QUOTE
Product introduction:
PI LSZH high and low temperature resistant radiation protection cable has low smoke, halogen-free, flame retardant, high and low temperature resistance, radiation resistance and good mechanical properties.
Compared with the traditional wrapped structure PI (polyimide) cable, the extruded PI (polyimide) molecular chain is denser, which solves defects such as vacuum and trachoma, and greatly improves the product’s voltage resistance characteristics.
Industry standard
- EN45545-2
Product Features:
- Long-term temperature resistance: -50-220℃
- Withstand voltage level: 300V 600V
- Resistance to gamma radiation: >850KGy, can be used for a long time.
- Low smoke halogen-free flame retardant:
Technical Parameters
| Nominal cross section |
conductor structure |
Conductor diameter d |
Insulation thickness |
Cable outer diameter D |
20℃ conductor resistance |
Average weight |
|---|---|---|---|---|---|---|
| root/diameter | ||||||
| mm 2 | mm | Min | Min | Min | Max | Kg/km |
| mm | mm | mm | Ω/km | |||
| 0.035 | 7/0.08 | 0.24 | 0.18 | 0.6 | 525 | 0.62 |
| 0.06 | 7/0.10 | 0.3 | 0.18 | 0.66 | 330 | 0.85 |
| 0.08 | 7/0.12 | 0.36 | 0.18 | 0.72 | 227 | 1.1 |
| 0.14 | 19/0.10 | 0.5 | 0.2 | 0.9 | 126 | 1.9 |
| 0.2 | 19/0.12 | 0.6 | 0.2 | 1 | 83.5 | 2.6 |
| 0.4/0.3 | 19/0.16 | 0.8 | 0.2 | 1.2 | 49.5 | 4.3 |
| 0.5 | 19/0.18 | 0.9 | 0.2 | 1.4 | 30.2 | 5.3 |
| 0.75 | 37/0.16 | 1.12 | 0.2 | 1.52 | 22.7 | 7.8 |
| 1 | 37/0.18 | 1.26 | 0.2 | 1.66 | 19 | 9.7 |
Note: Products with other specifications can also be customized according to needs
