In high-vacuum operation scenarios such as precision instruments, industrial coating, and vacuum furnaces, the signal and power transmission of fixed lines places stringent requirements on the vacuum adaptability, conductivity stability, and structural adaptability of the cables.
TST CABLE has been deeply involved in the specialty cable industry for over two decades, and has created the TST HV S single conductor unsheathed cable specifically for high vacuum environments of 10⁻³mbar～10⁻⁷mbar. With its single-core solid structure, high-quality materials and multiple specifications, it has become the core choice for fixed cabling in high vacuum scenarios.
01 Structural Advantages: Specifically designed for high-vacuum fixed wiring
The TST HVS uses a single solid conductor structure, which reduces conductor gaps and lowers the vacuum outgassing rate, making it more suitable for long-term stable operation of vacuum chambers.
Precision cleaning treatment of conductor surface
Insulation uses high-performance materials such as PEEK, PTFE, FEP, and ETFE.
No unnecessary additives, low outgassing rate, and does not disrupt the cavity vacuum.
Professionally cleaned at the factory; simple blowing is all it takes for installation.
Supports O-ring sealed connectors for enhanced vacuum sealing.
Bending radius: ≥ 7.5 times the cable outer diameter
02 Materials and Performance: Stable and reliable, suitable for harsh environments
✅Conductor options: Oxygen-free copper / Silver-plated copper / Nickel-plated copper / Alloy
✅Insulation and temperature resistance: 80℃～150℃
✅Applicable vacuum: 10⁻³mbar～10⁻⁷mbar
✅Applicable scenarios: Fixed installation, long-term stable cabling

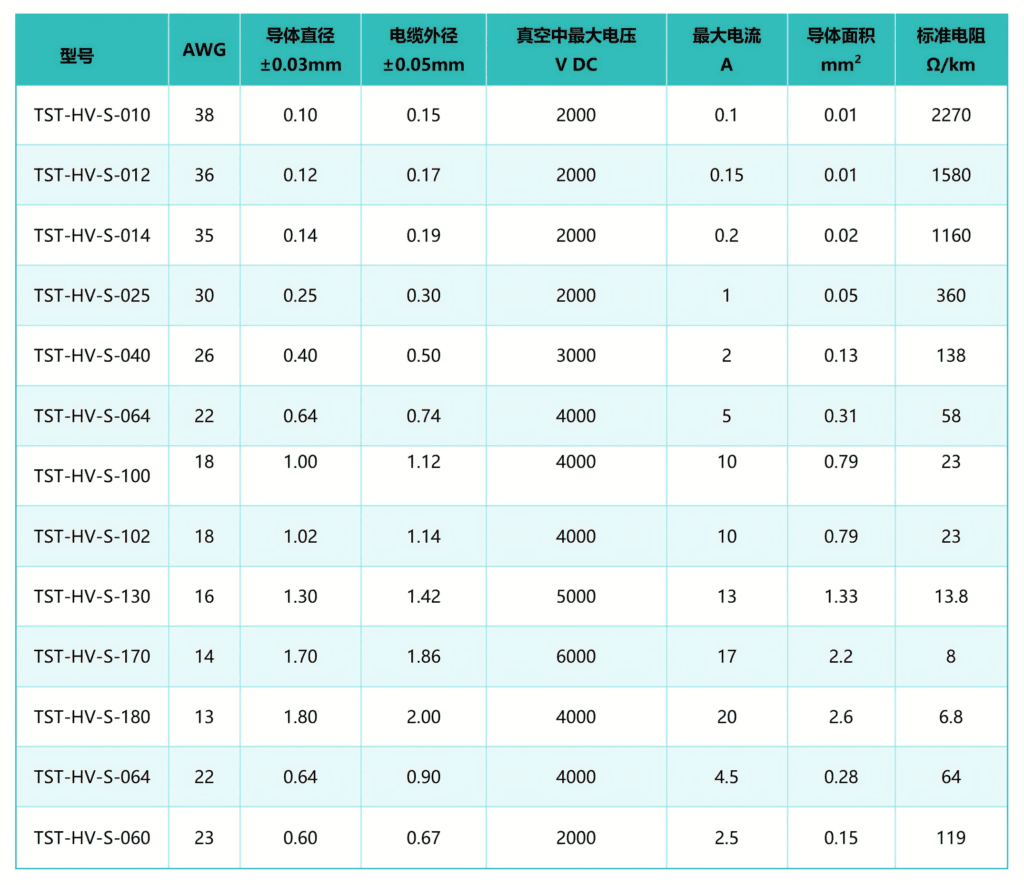

03 Product Specifications
Note: The above specifications are for reference only. Please refer to the official specifications for specific dimensions.

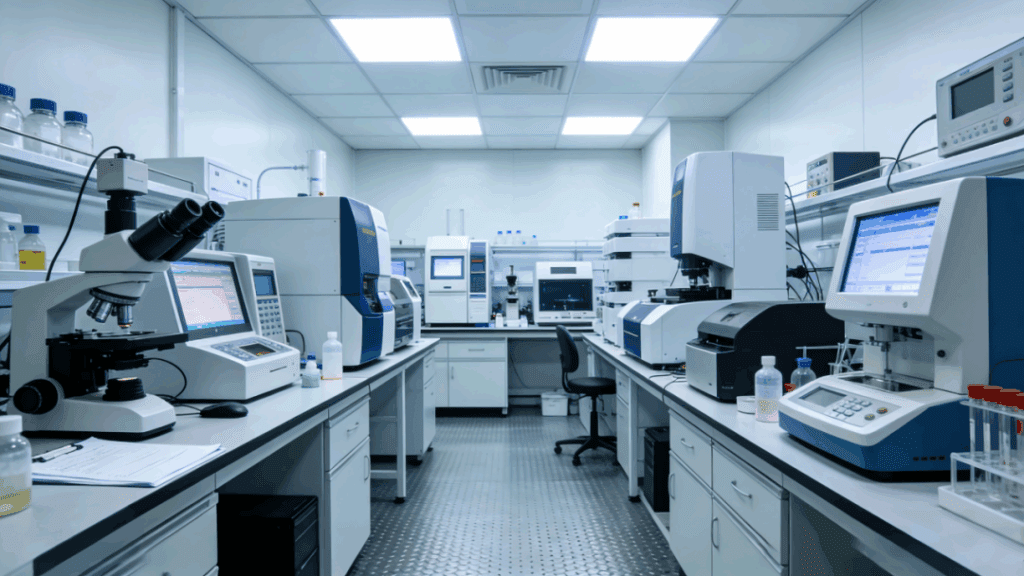

04 Typical Application Scenarios
TST HV S high vacuum cables are widely used in:
Precision Instruments / Electron Microscope
Industrial coating and surface treatment equipment
Vacuum furnace, vacuum drying equipment
Routine scientific research experiments and medical equipment
Metallurgical and heat treatment fixed wiring
TST CABLE’s products undergo rigorous vacuum performance testing and quality control processes, providing stable and reliable connection solutions for aerospace, marine engineering, military, and high-end experimental fields.
For immediate selection and consultation needs, please contact us through official channels for a one-on-one matching of dedicated cable solutions for high vacuum environments.
